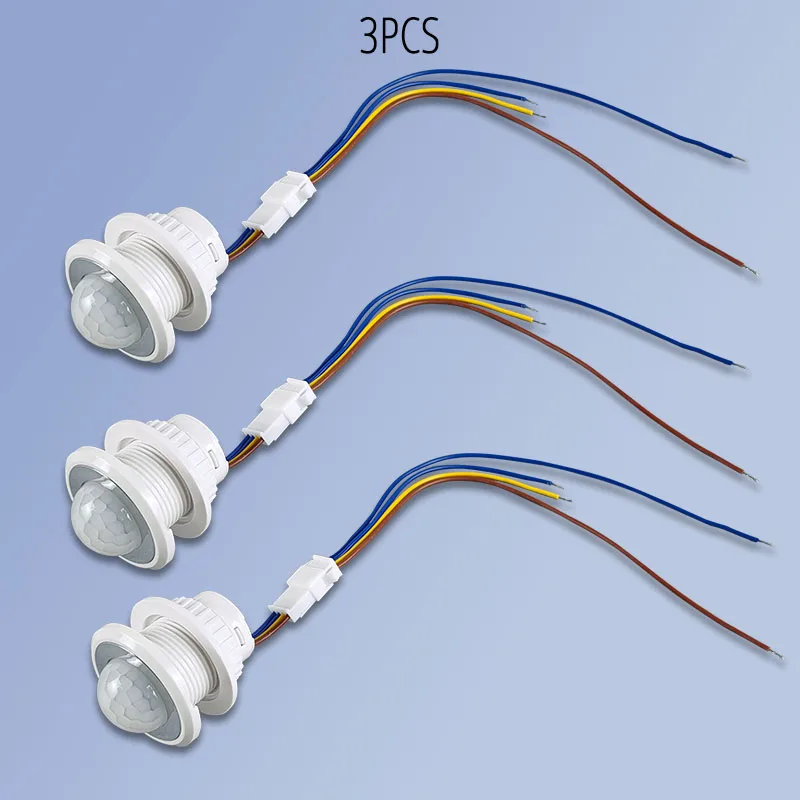

SPECIFICATIONS

Brand Name: NONE

Certification: CE

Choice: yes

Communication method: IR

Compatibility: All Compatible

Detection Angle: 120°

Detection Range: 4-6M

High-concerned chemical: None

Maximum Load: ≤40W

Model Number: Adjustable motion sensor

Origin: Mainland China

input voltage: 85-265V

output voltage: 85-265V

✅100% Brand New & High Quality– Durable PVC construction with sleek white finish
✅Plug-and-Play Installation– Compact, lightweight design for effortless setup
✅Automatic Control– Perfect for lights, exhaust fans, and low-power devices (≤40W)
✅Darkness-Activated– Triggers only in low light conditions (2-6Lux sensitivity)
✅Wide Compatibility– Works with both AC 85–265V (household) and DC 5–24V (low-voltage systems)

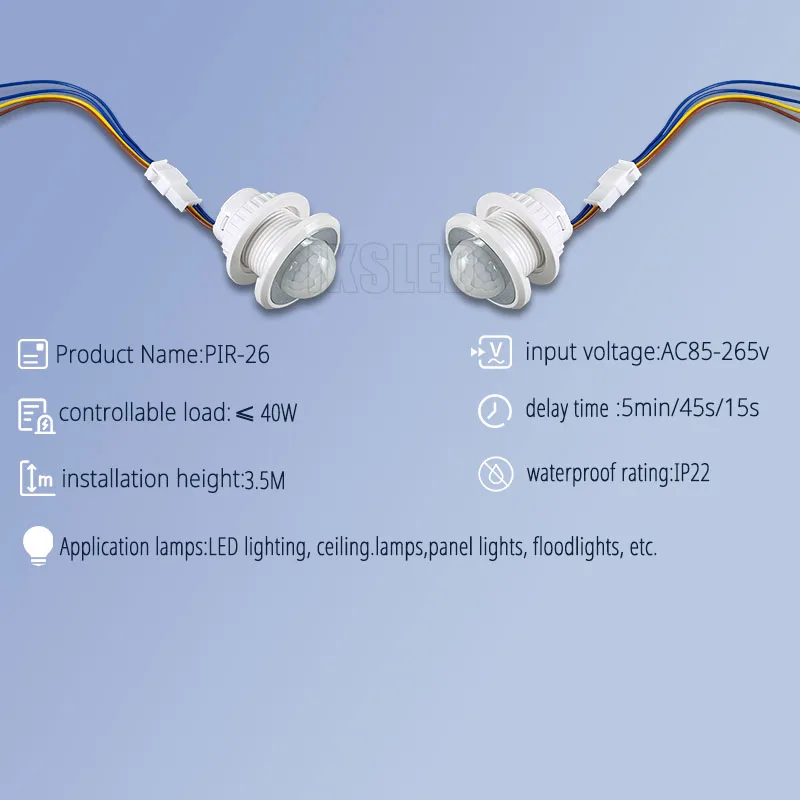

Key Specifications

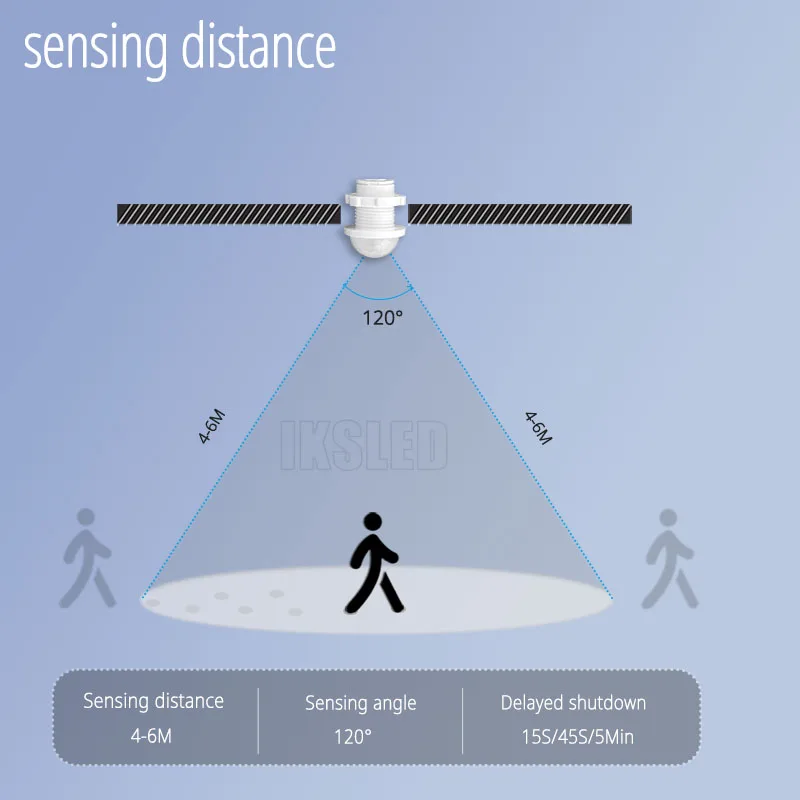

• Detection Range: 4–6 meters

• Coverage Angle: 120° wide field of view

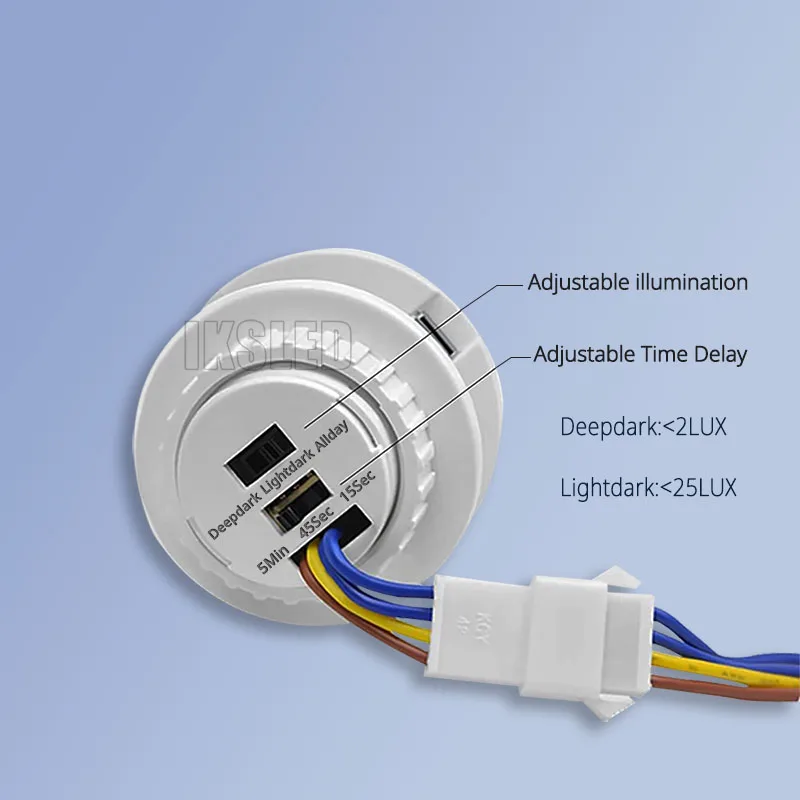

• Time Delay Options: 15 sec / 45 sec / 5 min (adjustable auto shutoff)

• Power Consumption: Ultra-low standby current (<50µA)

• Temperature Resistance: -20°C to +40°C (suitable for most environments)

Applications

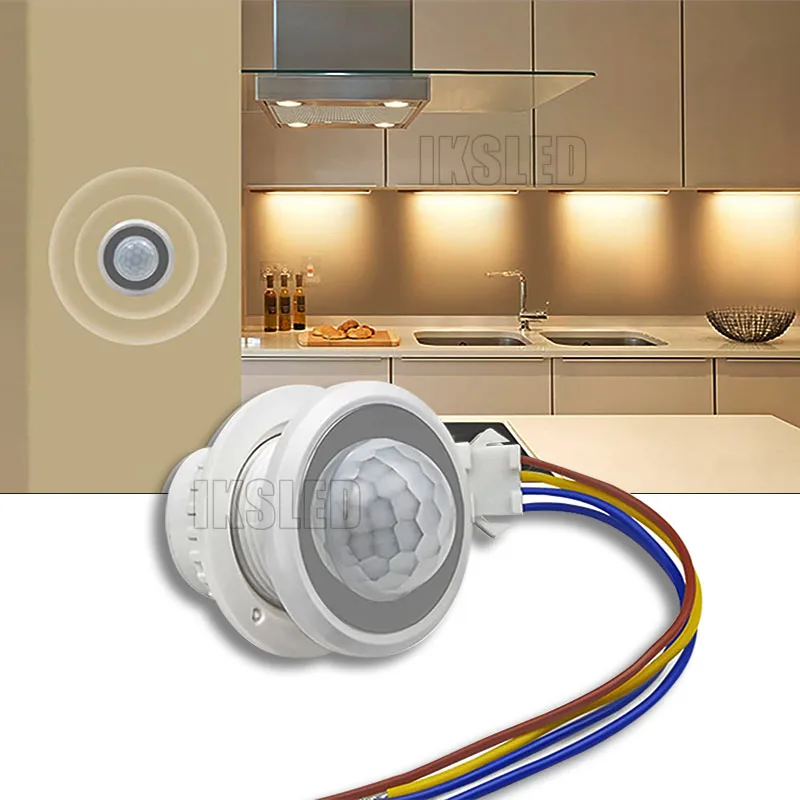

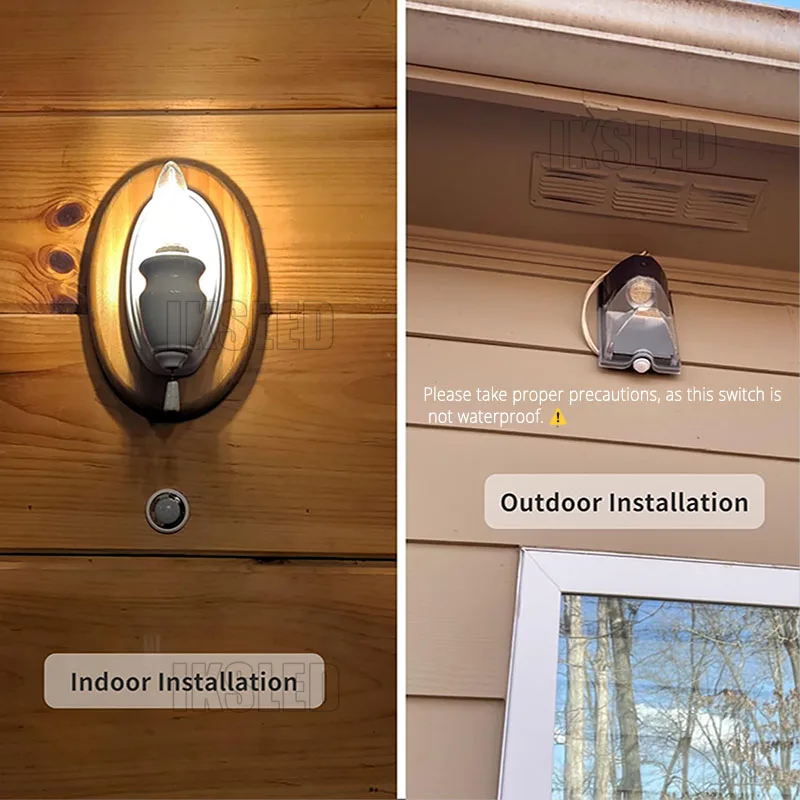

✔Indoor: Corridors, bathrooms, basements, closets, storage rooms
✔Outdoor: Garages, warehouses, advertisement light boxes
✔Compatible Devices: LED lights, exhaust fans, low-power appliances

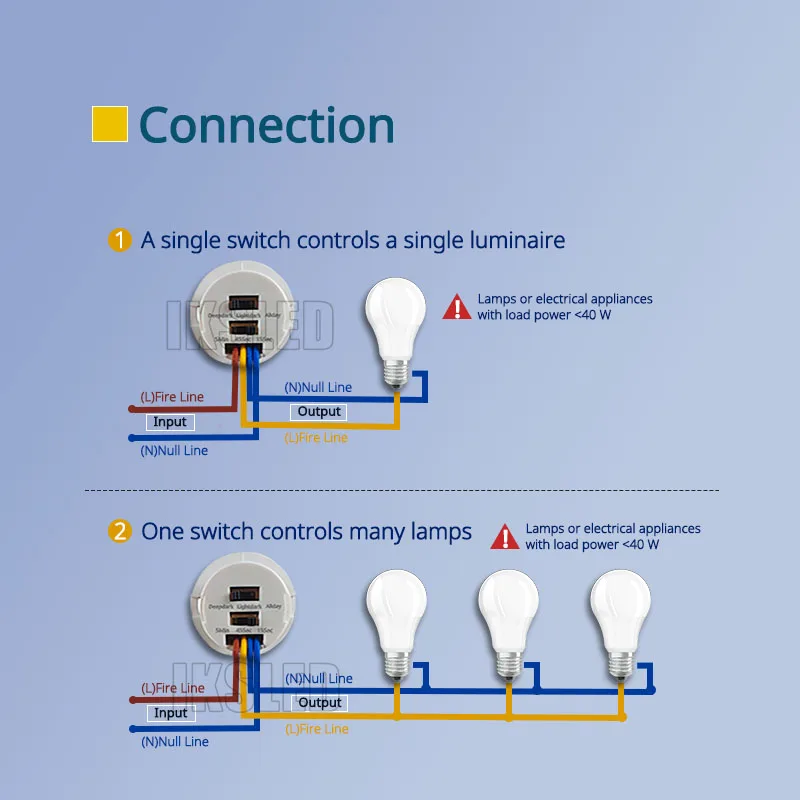

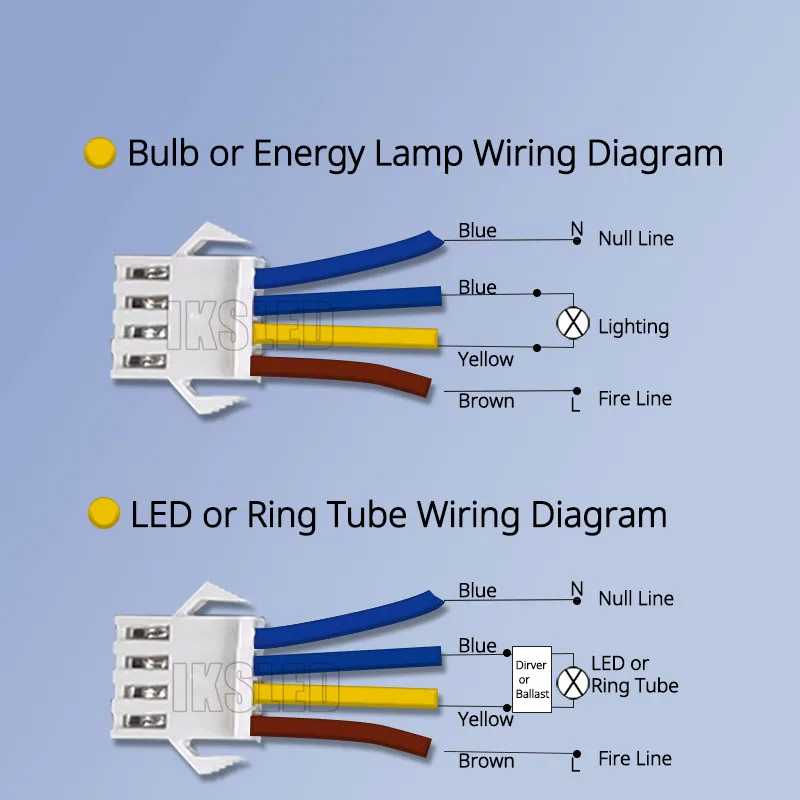

Installation Guide

⚠For optimal performance:

• Ensure the sensor has a clear, unobstructed view

• Maximum load capacity: 40W (not for high-power devices)
