SPECIFICATIONS
AC Voltageetection range: H:High sensitivity(12V-1000V) L:LOW sensitivity(48V-1000V)
Accuracy Class: High
Ambienttemperature(°C): Yes
Automaticpower off: Yes(About 5 minutes
Battery Included: No
Brand Name: Mastfuyi
Breakpoint: Yes
Certification: CE,FCC
Choice: yes
DIY Supplies: Electrical
Dimensions: 190mmx40mmx29mm
Display Type: Analog and Digital
Flashlight: Yes
Frequency range: 50Hz/60Hz
High-concerned chemical: None
Live wire check: Yes
Model Number: FY18S
Operating Temperature: 0℃-40℃
Origin: Mainland China
Power Supply: Battery
Powersupply type: 2*1.5V AAA Battery(Not included)
Product size: 190*40*29mm
Product weight: About 83g
Security level: CE CAT.III 1000VCAT.IV 600V
Voltage range: 12/48-1000V AC
Warning mode: Sound+Light+Screen Warning

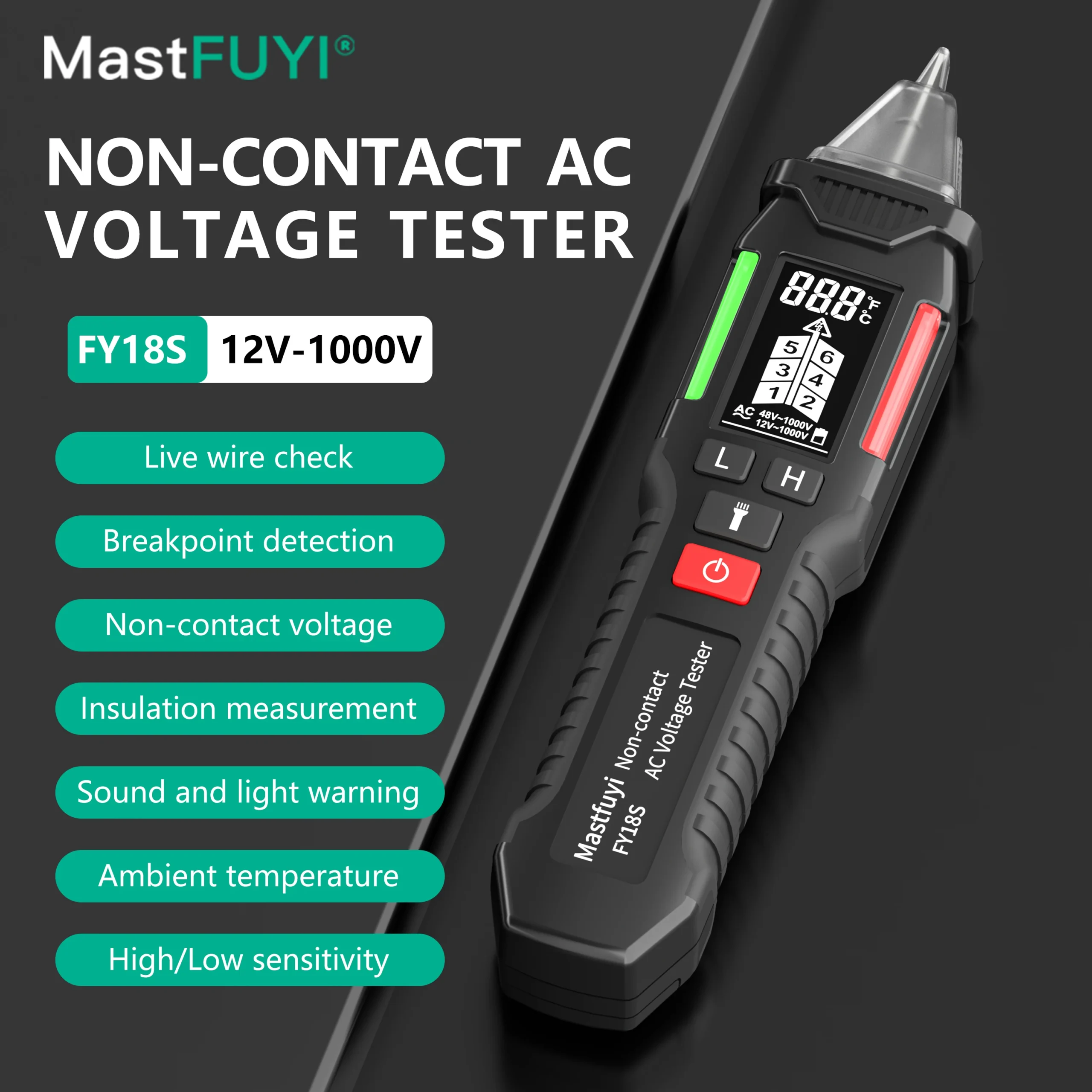

Large-screen Smart Voltage Tester
Live wire check
Breakpoint
Non-contact voltage
Insulation measurement
Sound and light warning
Ambient temperature
High/Low sensitivity
Product Details

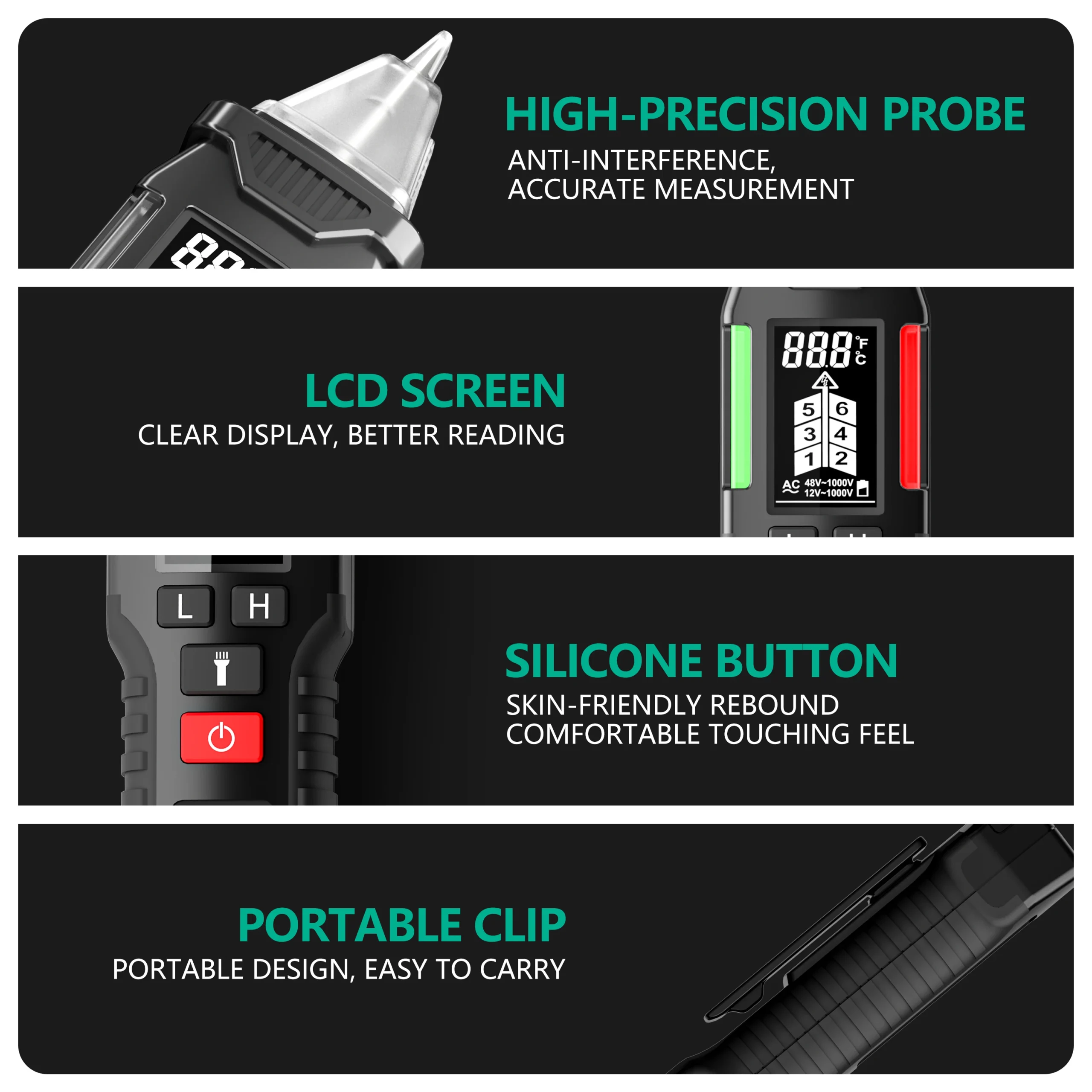

High-precision probe:
Anti-interference, accurate measurement
LCD Screen:
Clear display, better reading
Silicone button:
Skin-friendly rebound comfortable touching feel
Portable clip:
Portable design, easy to carry
9 CORE FUNCTION
Insulation measurement
Breakpoint
Live wire check
Sound/light warning
High/Low sensitivity
Flashlight
Large-screen display
Automatic power off
Ambient temperature
NCV
Non-contact AC Voltage Detection
LARGE LCD SCREEN
LIVE WIRE CHECK
Sound+light+Screen Warning
AMBIENT TEMPERATURE
BREAKPOINT DETECTION
Live point,Breakpoint,Dead point
LED lighting
SENSITIVITY ADJUSTMENT
High sensitivity:12V~1000V
Low sensitivity:48V~1000V

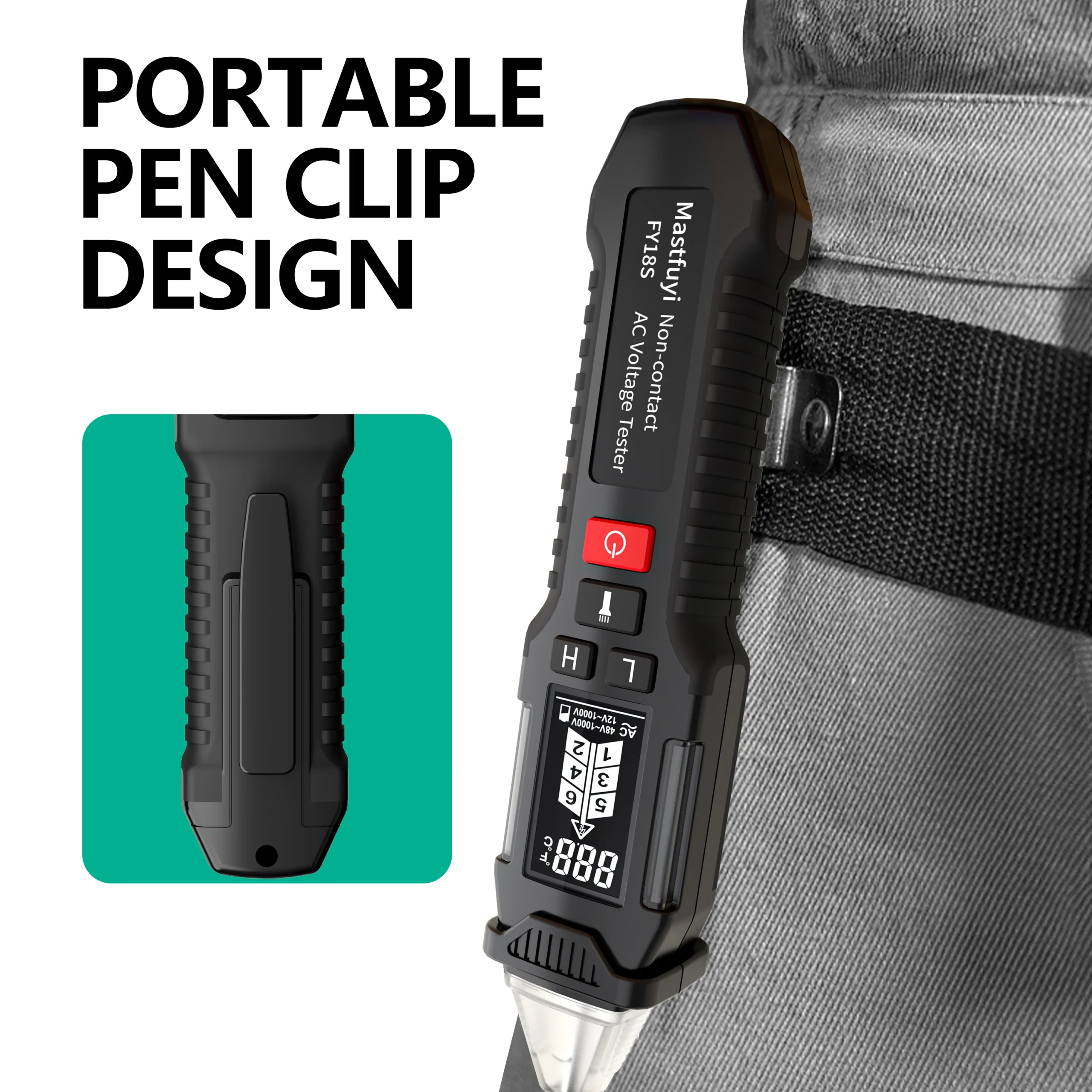

PORTABLE PEN CLIP DESIGN

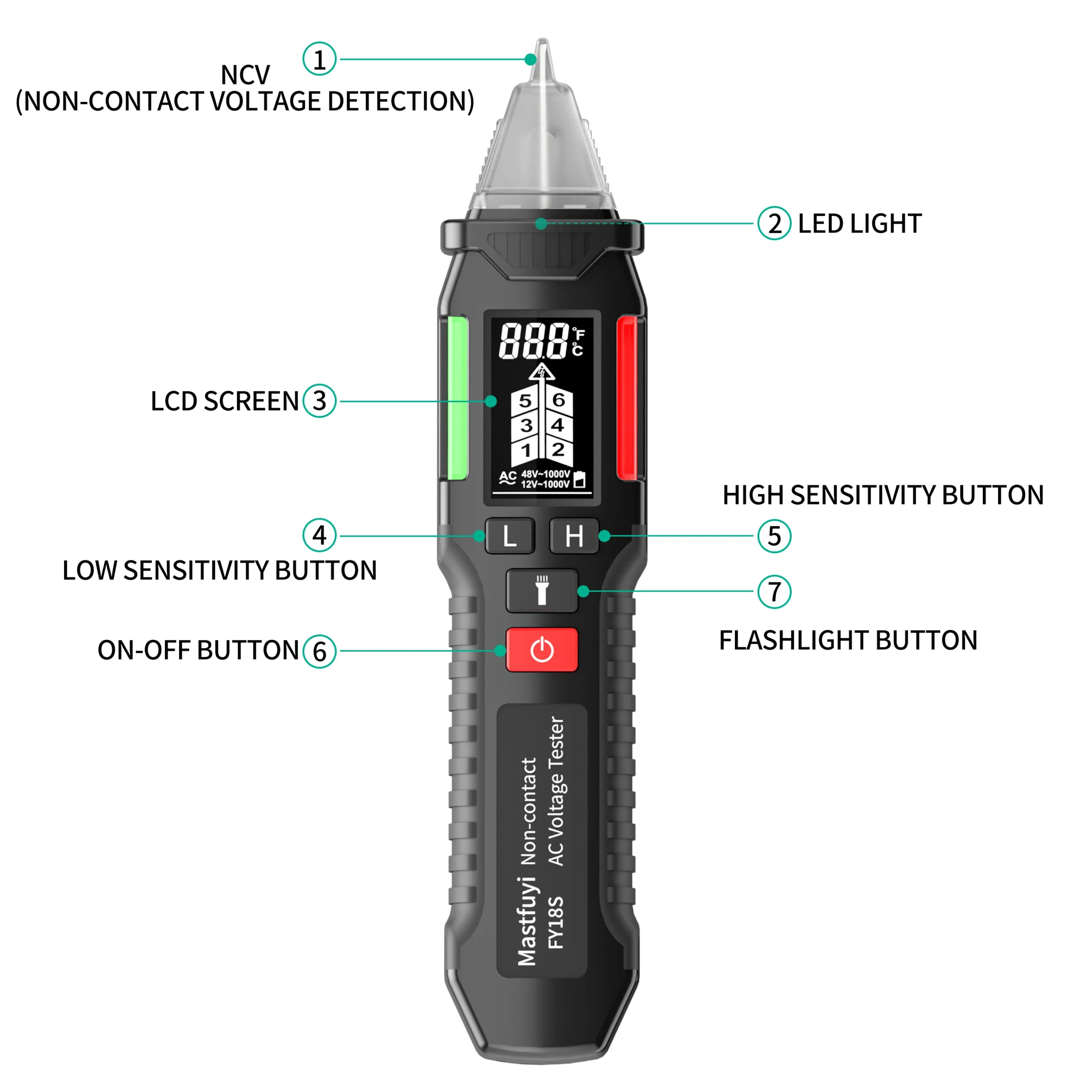

1.NCV(Non-contact voltage detection)
2.LED light
3.LCD Screen
4.Low sensitivity button
5.High sensitivity button
6.ON-OFF Button
7.Flashlight button
AUTOMATIC POWER OFF
If there is no operation within 5 minutes, the device will automatically shut down
Product appearance
AC Voltage etection range
H:High sensitivity(12-1000V)
L:LOW sensitivity(48-1000V)
Frequency range:50Hz/60Hz
Warning mode:Sound+light+Screen Warning
Live wire check:Yes
Breakpoint:Yes
Flashlight:Yes
Ambient temperature(℃):Yes
Automatic power off:Yes(About 5 minutes)
Security level:CE CAT.â…¢ 1000VCAT.IV 600V
Power supply type:2*1.5V AAA Battery(Not included)

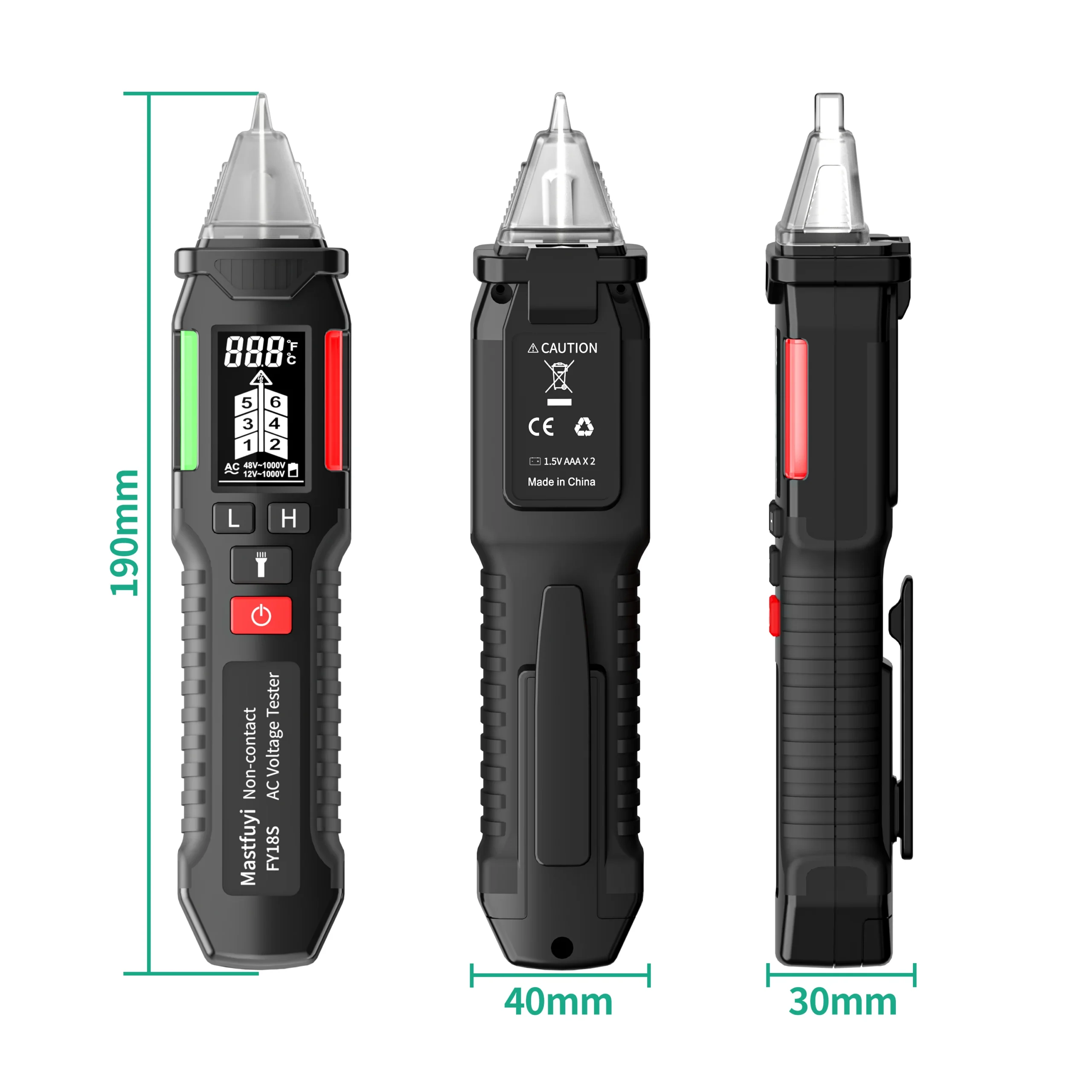

Product size:190*40*29mm
Product weight:About 83g
